HSR-DT801B
Click to enlarge photo
“The DT801B is suitable for fast sorting or boxing in various industries, integrated intelligent visual recognition, and good dynamic tracking. The 1KG load can meet most products that require fast sorting. DT_Catch software integrates visual settings, tool settings, The track setting, palletizing module and calibration module are integrated to simplify the operation process, so that users can change the program they need at any time. Mature motion control technology ensures the stability of the robot system. The key moving parts adopt imported mature brand to ensure the service life.
1. Precise positioning: Repeat positioning accuracy is up to 0.1mm.
2.Visual Intelligent Recognition: The robot comes with a vision system that recognizes and accurately locates the shape, features and posture of the target.
3. Conveyor dynamic tracking: Dynamically capture the target of visual recognition, greatly improving the efficiency of capture.
4. High speed: No-load grabbing beat can reach 140 times / minute (span 400mm)"
| Industrial robot | HSR-DT801B | |
| four-axis | ||
| Cartesian coordinate operating range： | R | 400mm radius |
| Z | 200mm | |
| Joint operating range： | J1 | +5°/+125° |
| J2 | +5°/+125° | |
| J3 | +5°/+125° | |
| J4 | ±360° | |
| Running beat（25-400-25） | 140 | |
| Repeatability | ±0.1mm | |
| Rated load | 1kg | |
| Motor power | 1-3axis | 750W |
| Motor power | 4th axis | 400W |
| Total power | 3000W | |
| Voltage | 380V | |
| I/O parameter | Digital: 32 inputs, 32 outputs | |
| IP grade | IP54 | |
| Ambient humidity | < 85% | |
| ambient temperature | 1-45℃ | |
| The weight of the whole machine | 110kg | |
| Installation method | hoisting | |
| Control cabinet protection grade | IP53 | |
| Control cabinet size | 560（wide）×330（thick）×730（high） | |
| Control cabinet weight | 45KG | |

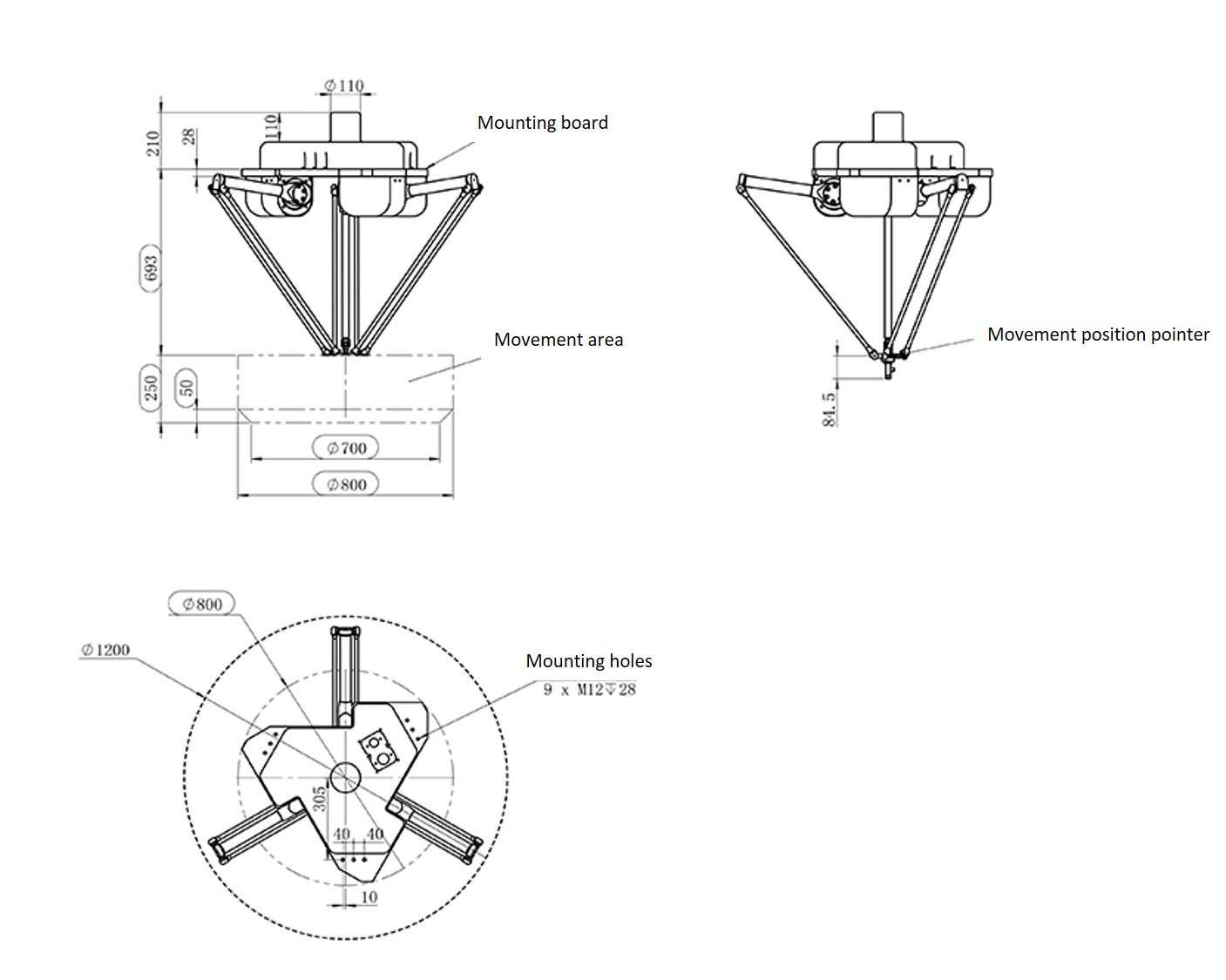

Product Outline and Mounting Dimension:
