HSR-BR5110 Palletizing robot
Click to enlarge photo
The HSR-BR5110 is developed for the needs of small working sites, high cycle and cost-effective. It is especially suitable for efficient palletizing operations where wrist joint freedom is required.
1: Unique double-rotation structure. Compared to the external rotary motion of a general-purpose robot, the BR5110 inherits the unique double-rotation configuration (outer rotation and internal rotation) of the Huashu BR series robot.
2: 360 degrees full coverage. The BR5110 achieves 360° full coverage over a 2.4 m radius.
3: Flexibility. Compared with the traditional four-axis palletizing robot which can only handle the target in a single attitude, the wrist joint added in BR5110 can realize the grasping and placing action in various postures.
4: Efficient. The BR5110 is faster than conventional robots with the unique dual-rotation design and the high-speed motor configuration.
5: Convenient and easy programming operations. The BR5110 comes standard with a palletized process package for easy programming.
| Industrial robot | HSR-BR5110 Palletizing robot | |
| Freedom | 5 | |
| specified load | 110KG | |
| Maximum working radius | 2400mm | |
| Repeatability | ±0.2mm | |
| Range of motion | J1 | ±180° |
| J2 | -180°/+80° | |
| J3 | +20°/+330° | |
| J4 | ±120° | |
| J5 | ±360° | |
| Rated speed | J1 | 1.48rad/s,85°/s |
| J2 | 1.35rad/s,78°/s | |
| J3 | 1.22rad/s,70°/s | |
| J4 | 3.27rad/s,187.5°/s | |
| J5 | 3.93rad/s,225°/s | |
| Maximum speed | J1 | 2.23rad/s,128°/s |
| J2 | 2.03rad/s,116°/s | |
| J3 | 1.84rad/s,105°/s | |
| J4 | 3.93rad/s,225°/s | |
| J5 | 5.23rad/s,300°/s | |
| Allowable moment of inertia | J5 | 11.31㎏㎡ |
| J4 | 45.77㎏㎡ | |
| Allowable torque | J5 | 327.89NM |
| J4 | 707.92NM | |
| Applicable environment | temperature | 0°C-45°C |
| humidity | 20-80% | |
| other | Avoid contact with flammable, explosive or corrosive gases and liquids. Keep away from electronic noise sources (plasma). | |
| Cable Length of Instructor | 8metre | |
| Body-cabinet connection line length | 8metre | |
| I/Oparameters | Digital: 32 inputs, 31 outputs (one for control cabinet fault indicator output) | |
| battery capacity | 17kVA | |
| rated power | 14KW | |
| Rated voltage | Three-phase Five-wire AC380V | |
| Rated current | 20.77A | |
| Body protection grade | IP50 | |
| Installation method | Ground installation | |
| Body weight | 980kg | |
| Control cabinet protection grade | IP54 | |
| Control cabinet size | 700 (wide)x 500 (thick)x 1200 (high) – vertical type | |
| Control cabinet weight | 160KG | |

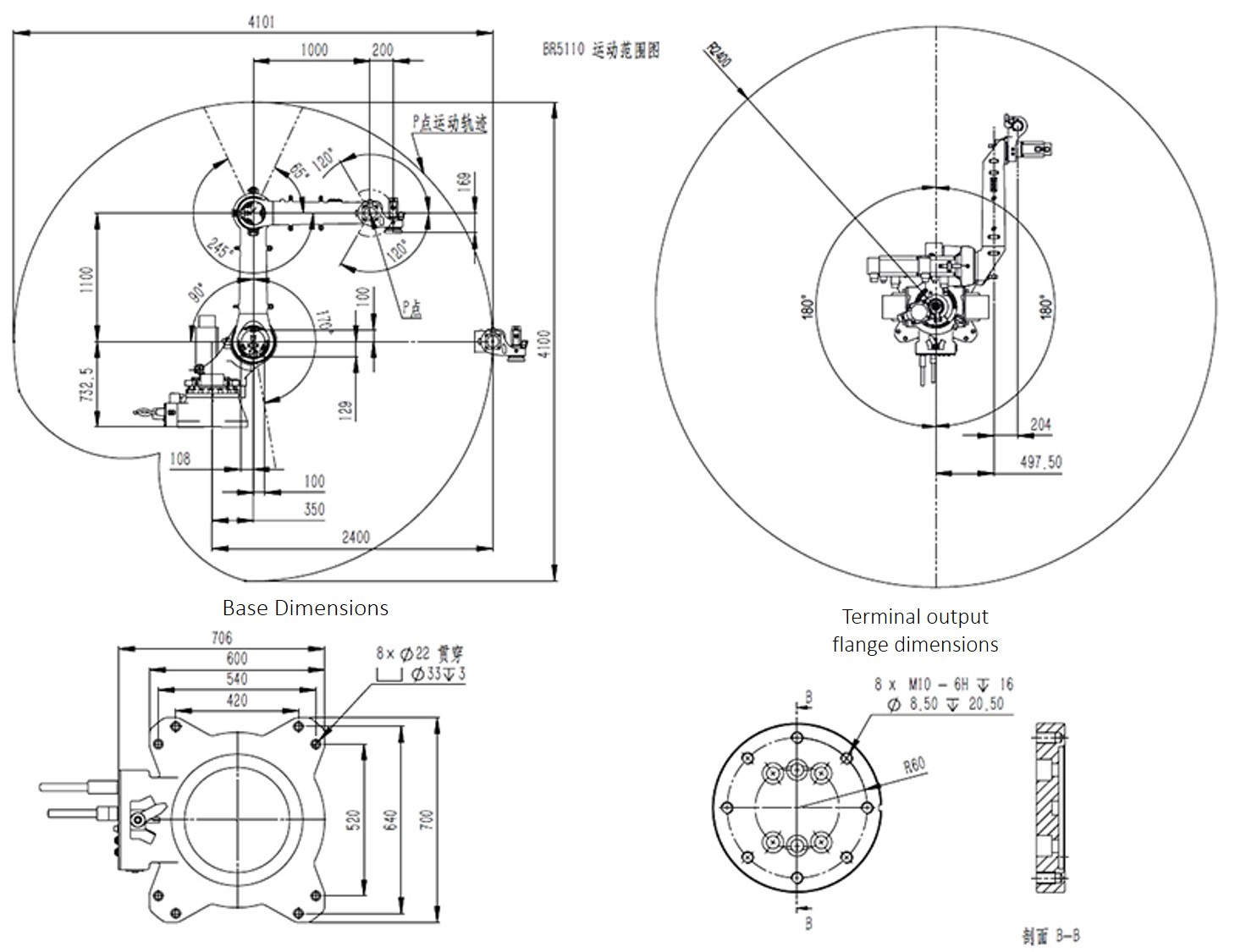

Product Outline and Mounting Dimension:
